Logic Pro X Reset Control Surfaces and V-Control

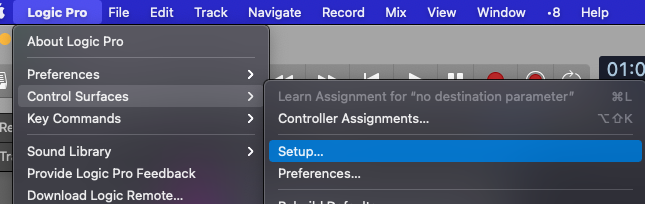

If Logic is not connecting to Raven and the Transport and Faders are not functioning, then there is likely a problem with V-Control and Logic communication. To reset the Logic Control Surfaces go to Logic Pro X->Controller Surface-Setup.

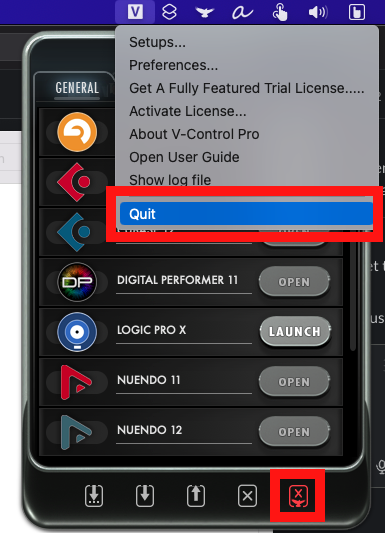

First, quit V-Control Pro and RAVEN applications. (Quit RAVEN by Clicking the Red X in the RAVEN Dashboard)

Native to Logic Pro - Control Surfaces - Setup.

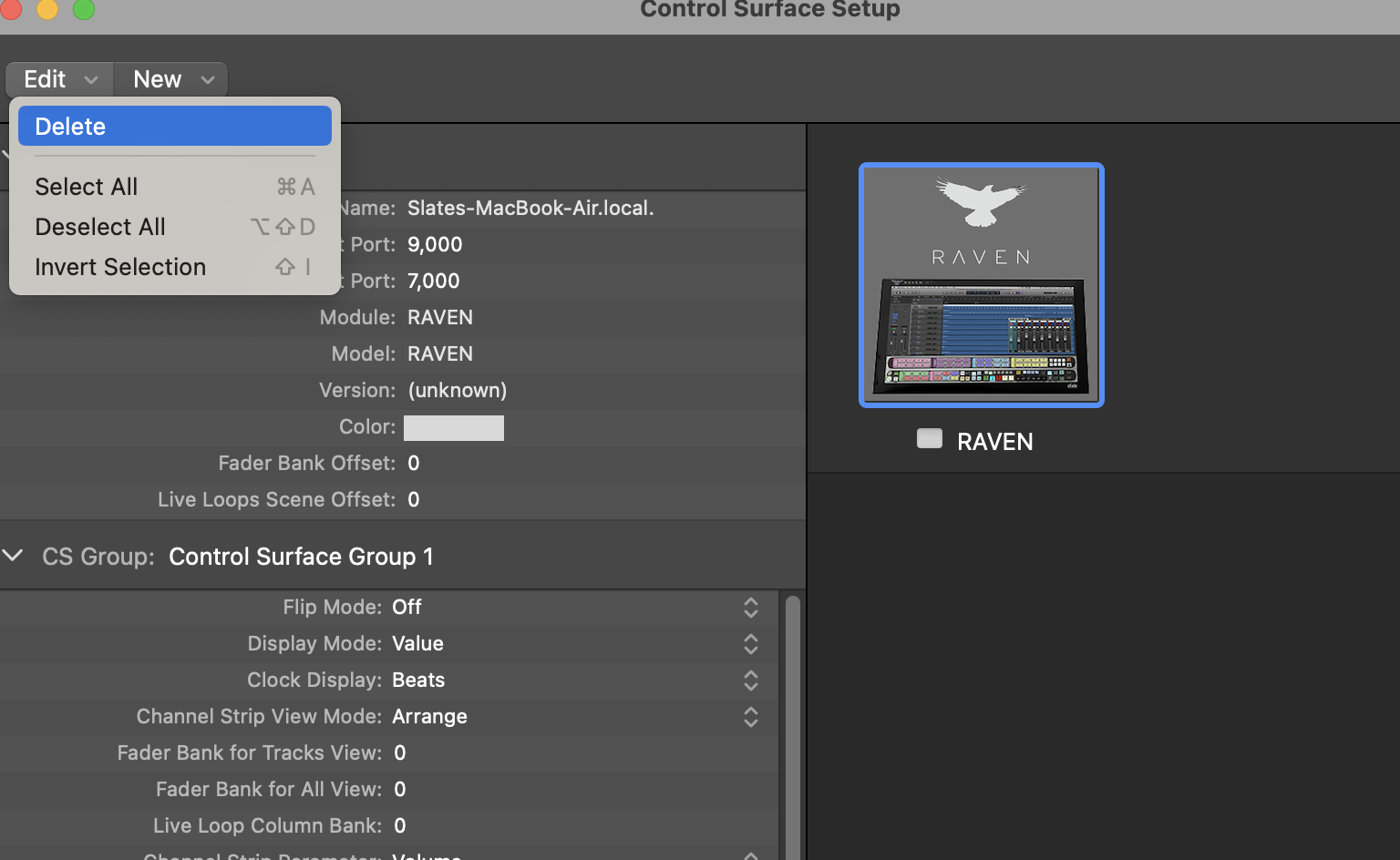

Select all the Controllers and then hit "Delete" from the edit drop menu.

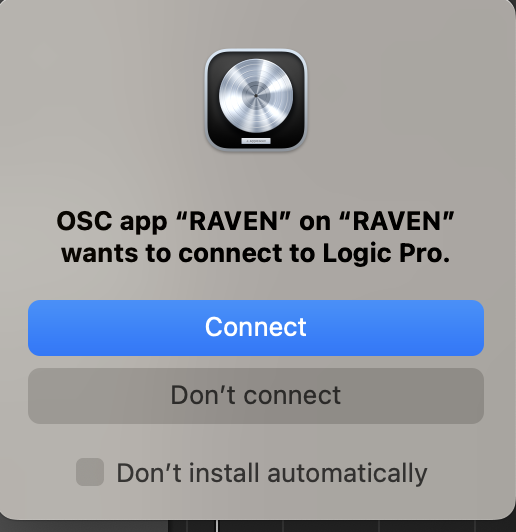

Re-Launch RAVEN and select "Connect" when the V-control / RAVEN message pops up..

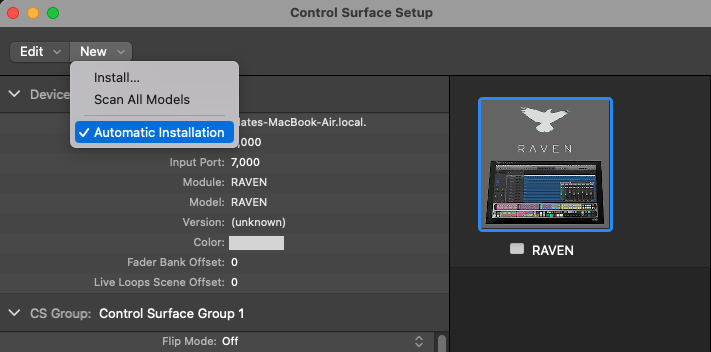

Double check Automatic Installation is Selected otherwise Logic will not add any controllers.

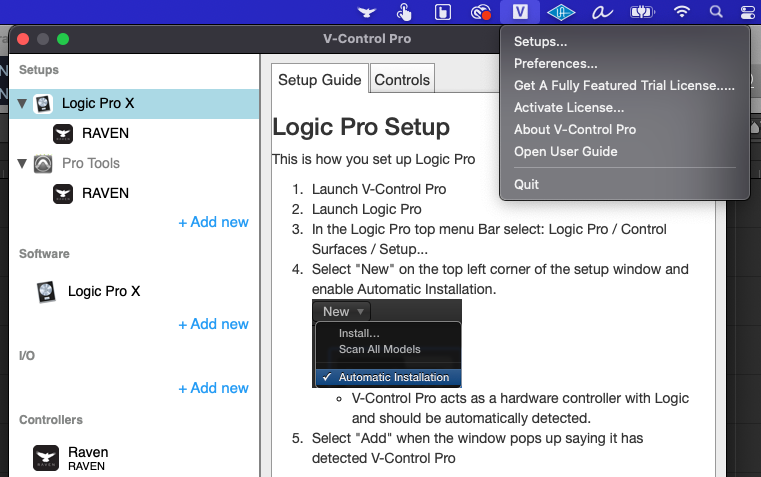

Double check "V-Control Setups" tab to see that Logic and Raven are being seen by V-Control..
