Setting Up Studio One with V-Control Pro for RAVEN Windows.
The following article explains how to set up Studio One for the use with the RAVEN.
1. Register the passcode that came in the box and activate iLok License
2. Install the RAVEN Software from within your Slate account
Go to this link and type in your login info to download the software.
http://users.drumclassroom.net
3. Configure Mackie Controllers for 24 Track RAVEN Faders

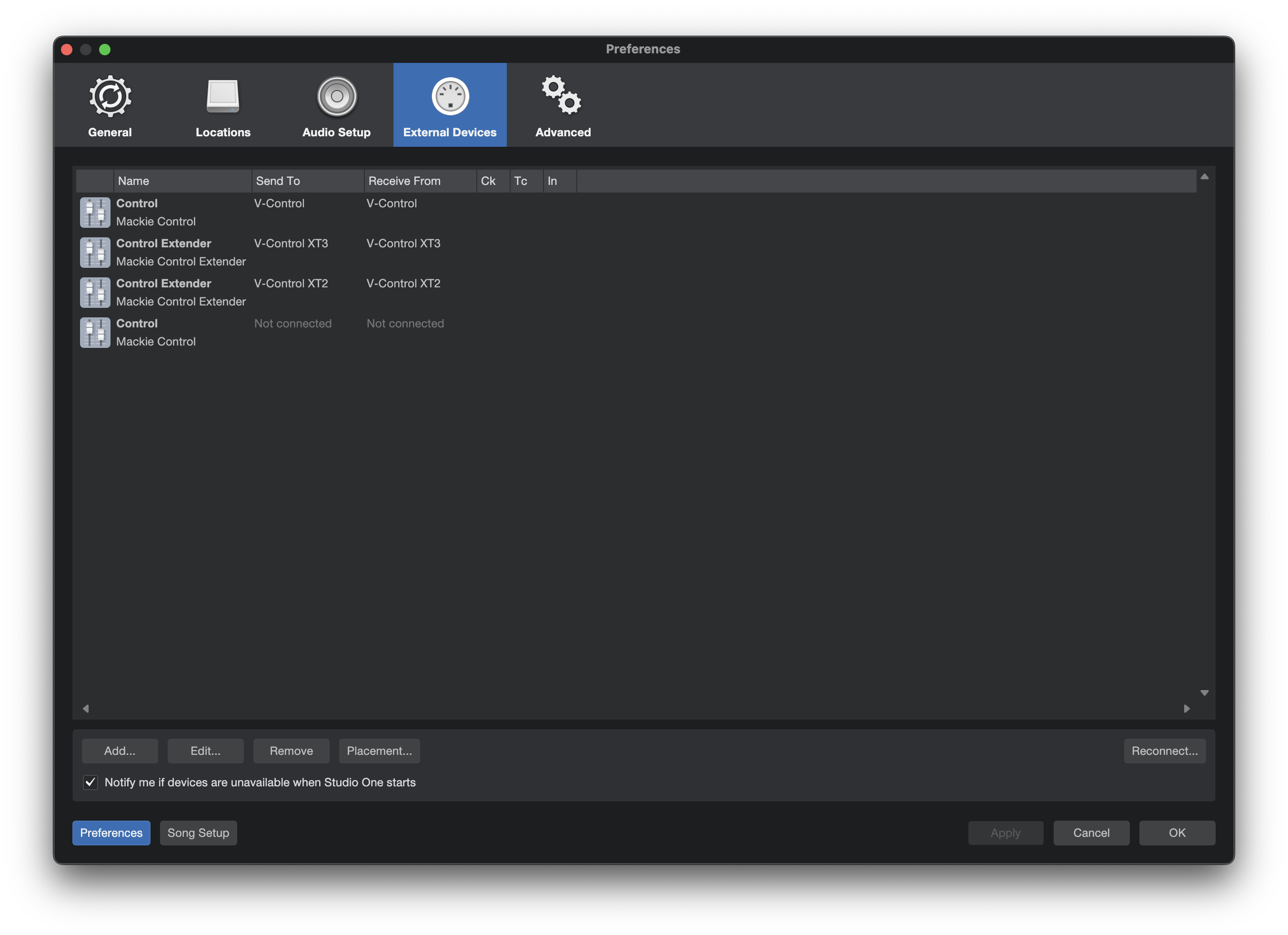

Open Studio One Preferences and select "External Devices"

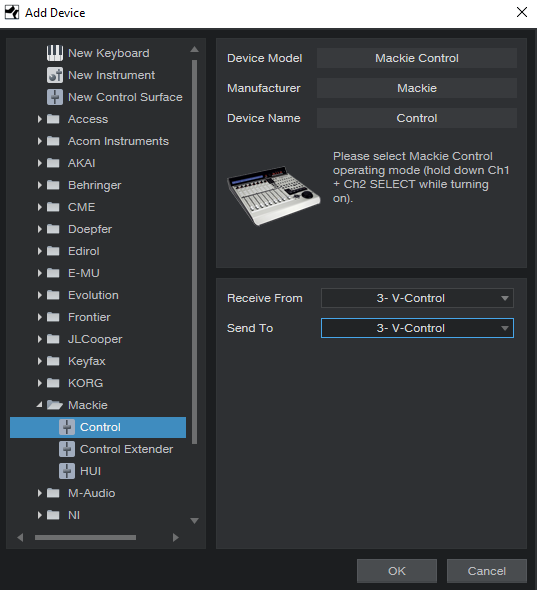

Click the "Add" button and select Mackie-Control and set the input and output to V-Control Pro.

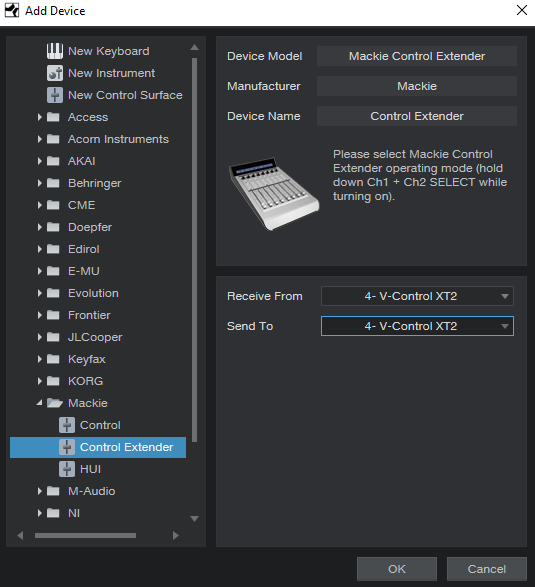

Click the "Add" button and select Mackie-Control Extended and set the input and output to V-Control Pro XT2

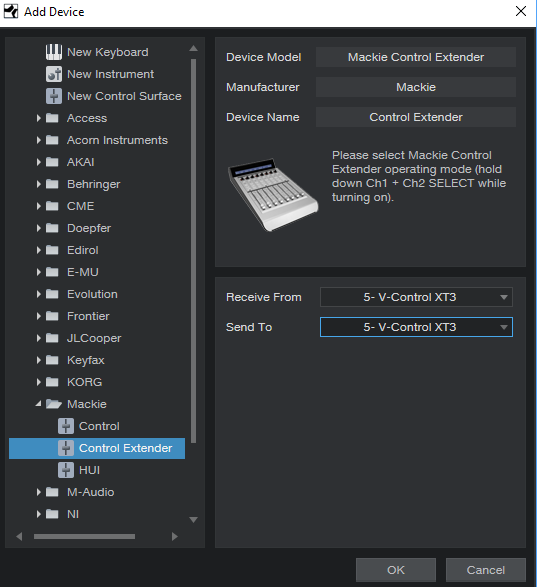

Click the "Add" button and select Mackie-Control Extended and set the input and output to V-Control Pro XT3

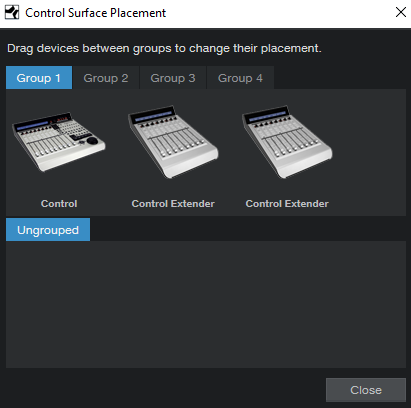

Click the "Placement" button and add the 3 Mackie Controller devices to the Group 1.
4. Import the RAVEN KeyScheme for Batch Command functionality.

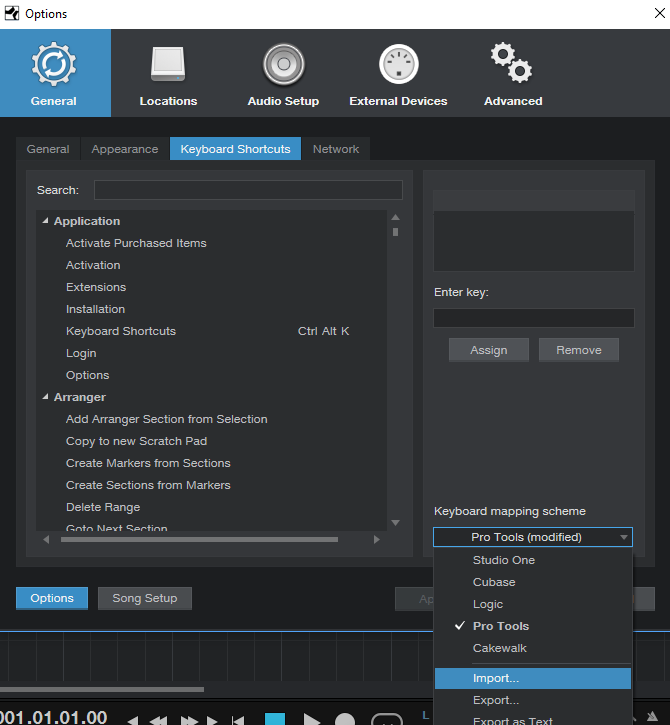

Open Studio One Preferences and select the "Keyboard Shortcuts" from the General Tab.
Click the "Import" button and select the RAVEN Keyscheme. User can download this file from the link at the bottom of this article.
5. Configure the touch driver for your display setup.
Click the Hand Icon in the system tray of the task bar and press "Configure". This will run through a setup screen, where you will need to "TOUCH" the X on the touch screen monitors, and "CLICK" the X on the screen that doesn't have touch. Set UPDD Commander to always open as admin for touch to work in some apps.
6. Choose Window Native Touch Gestures or UPDD Commander Gestures.
Right click Studio One in UPDD Commander and choose "Pass all touches to Windows" and this will allow 2 or 3 gestures in Studio One. Or use the full Gesture Profile for over 100 available gestures in S1.

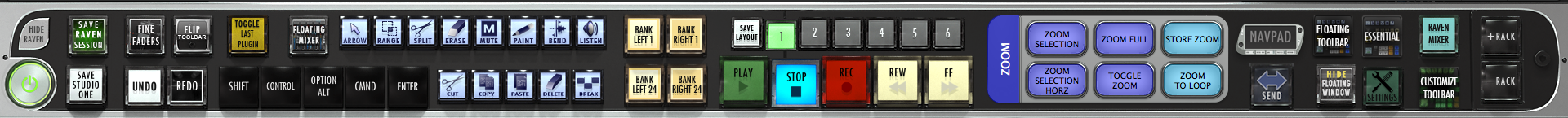

7. Launch the RAVEN Software and Toolbars.
