RAVEN Classic Console Fader Groups for Logic Pro

Here is an article and video on how to utilize Fader Groups in the RAVEN to easily focus all the desired fader groups without the need to bank to find the tracks.  Attached to the article are template screen-set files as well.

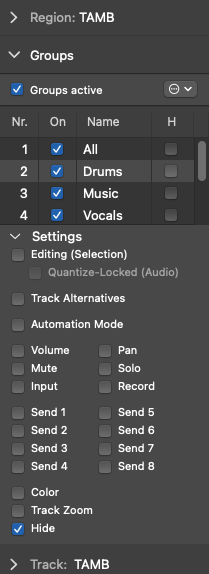

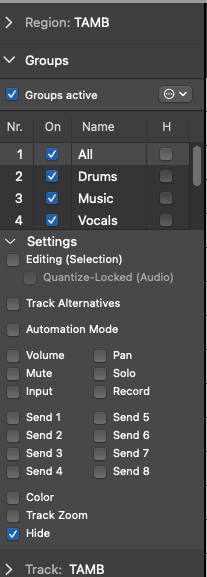

1. Create "All Track" Fader group for every desired track in the session as group 1 and turn off everything except the "Hide" option in the group settings.

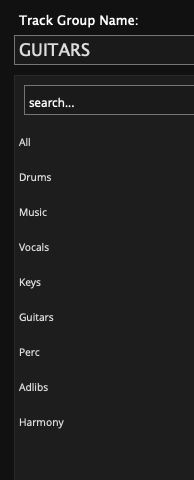

2. Create "Drums" group and "Music" group and "Vocal" group and set only "Hide" option in these group settings.

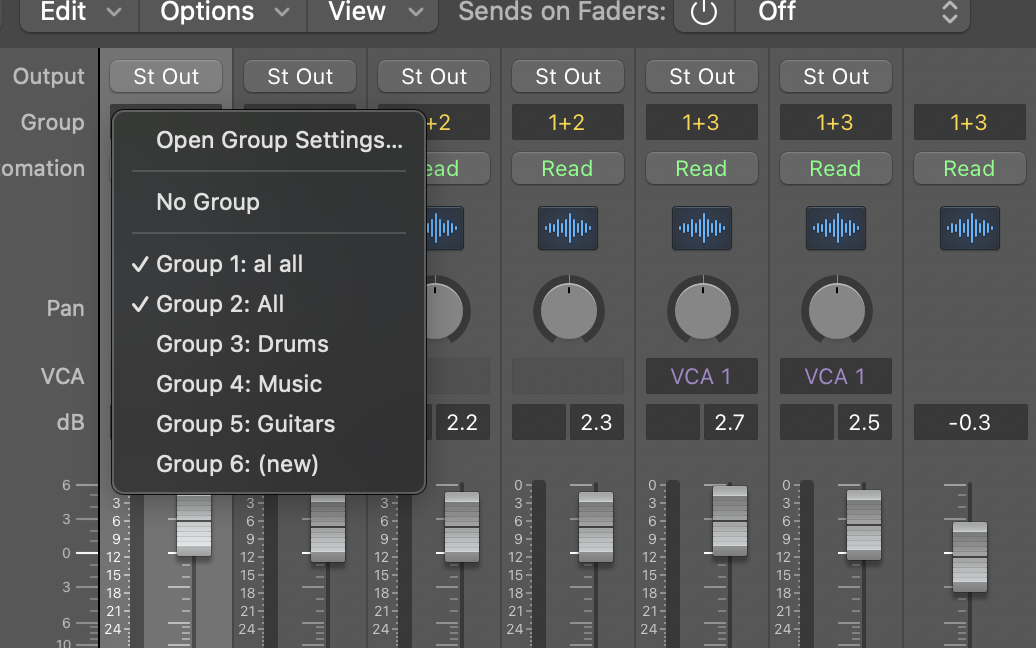

3. Make sure to assign every track in the session to Group 1 and Group 2-9, otherwise when showing all tracks all the faders won't show up.  Logic lets users assign multiple groups to each track so this is useful when certain tracks may belong to multiple fader groups. i.e Music Tracks or Bg Vocals tracks.

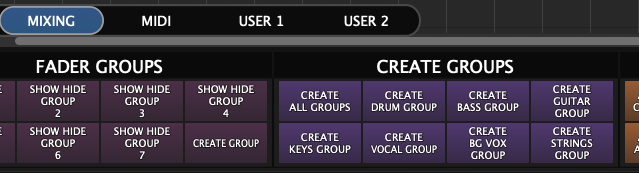

4. Push and Hold a Fader Group button in the RAVEN Classic Console and choose a fader group from the Batch Command editor or use the preset Batch Commands to show and hide these groups.

5. Users can also instantly create the groups with

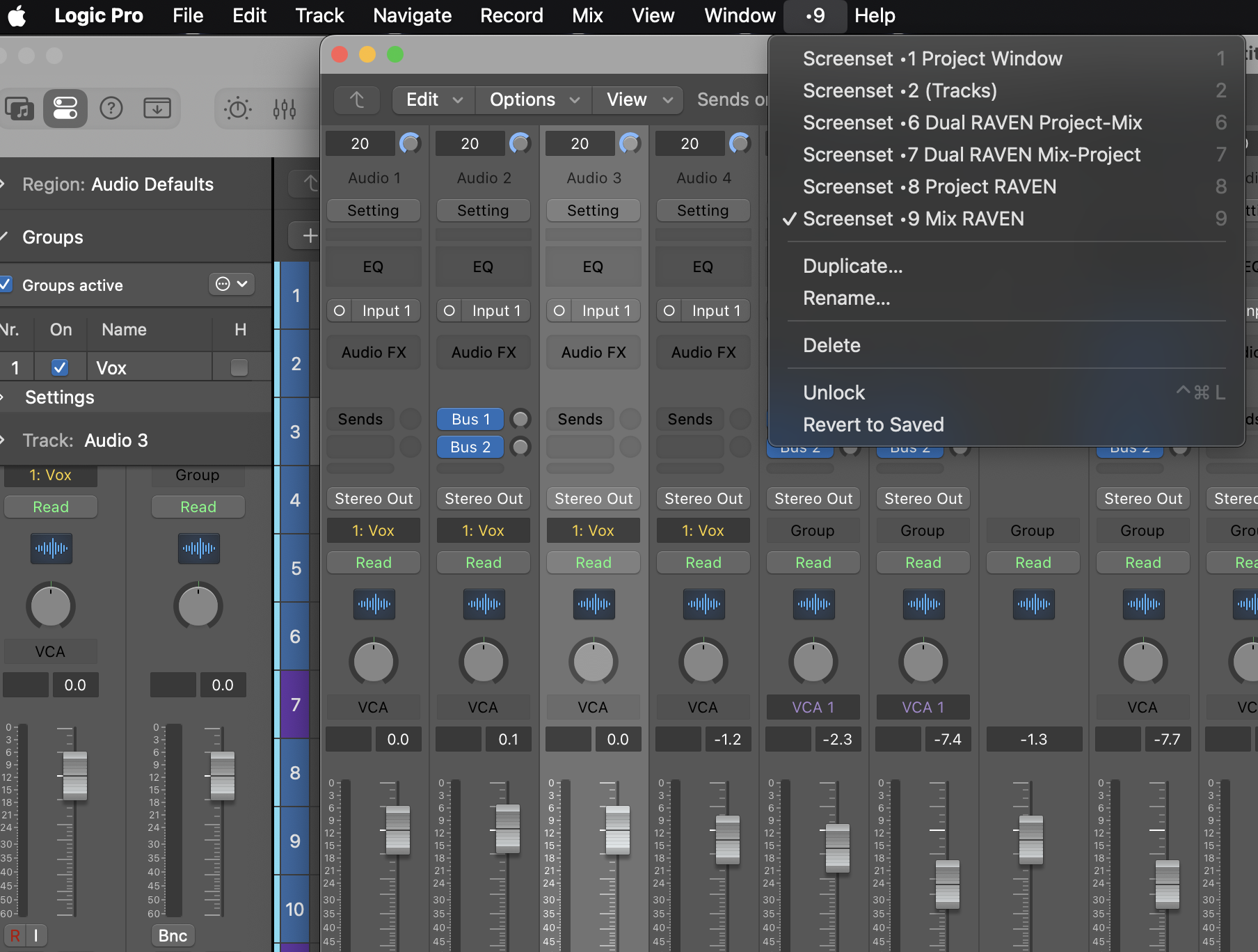

Be sure the Logic Main Window and Inspector Group List is showing in Screenset 9 for the Batch Commands to find the group buttons.
