Logic RAVEN 4.0 Setup

Here is an article on how to setup RAVEN 4.0 with Logic.

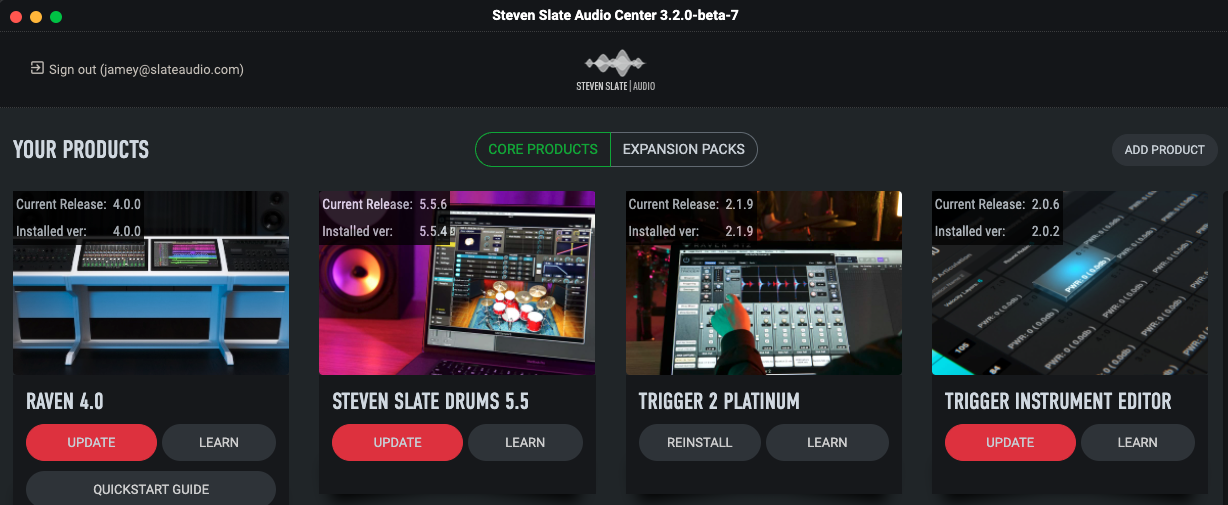

  1. Install RAVEN 4.0 in the Slate Audio Center
    Screenshot 2024-08-26 at 9.28.40 AM.png
  2. Launch the RAVEN Toolbars and add RAVEN or RAVEN 32 controller when prompted.
    Connect to RAVEN 32.png

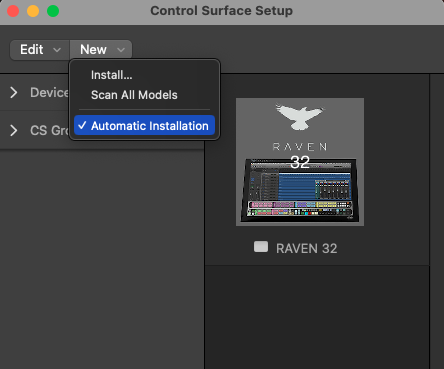

    Confirm the controller is in the Logic Control surface setup tab and automatic installation is checked on.
    controller automatic install.png

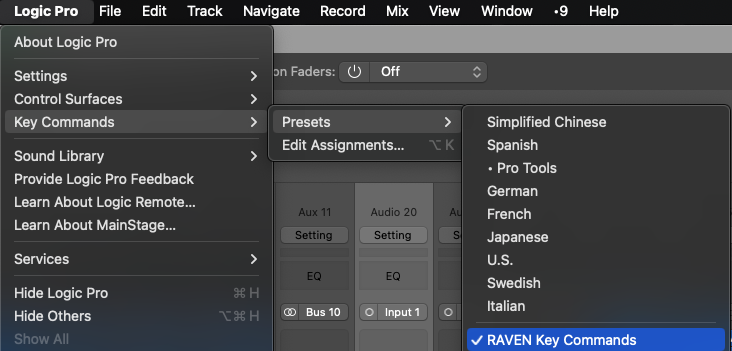

  3. Load RAVEN Key Commands
    logic raven keys.png

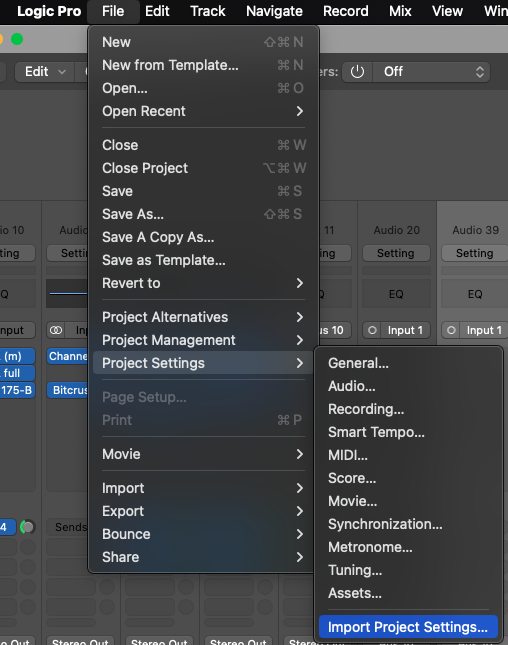

  4. Import RAVEN template Screen-sets for easy RAVEN Internal Mixer alignment and display setup. Go to File/Project Settings/Import Project Settings
    import project settings.png

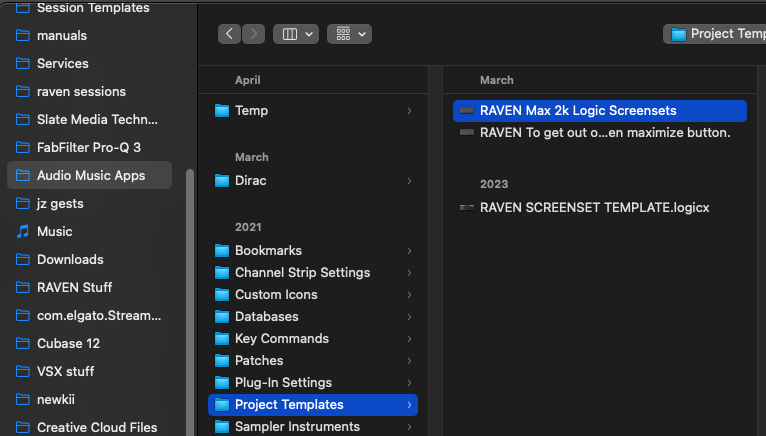

    Choose the correct RAVEN template screen-setspick template.png

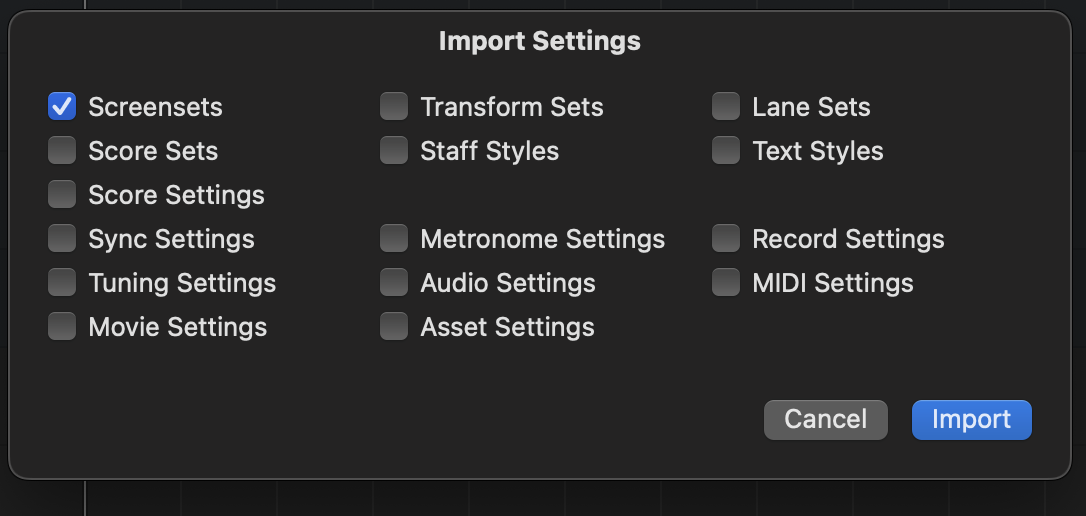

    Check the box for Screensetsscreensets.png

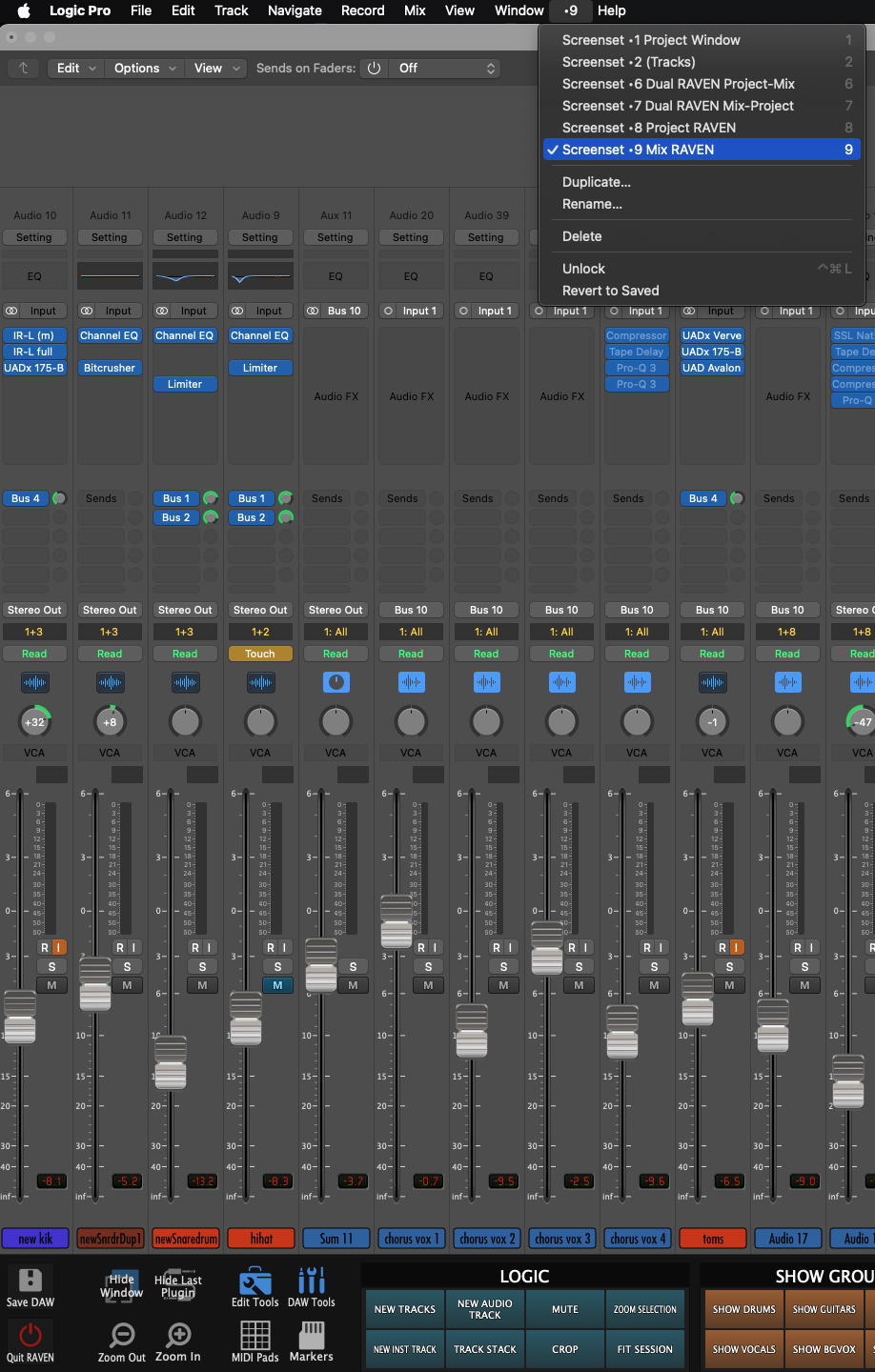

  5. Press the Mixer button on RAVEN and confirm Screenset 9 is syncing the RAVEN Internal Mixer and the Logic Mixer.
    logic align.png

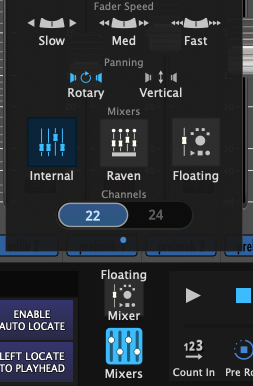

    Hide and show the RAVEN Internal Mixer but pushing and holding the "Mixers" button or open the Mixers pop out window and press the Internal Button.
    internal button.png
