RAVEN 4.0 Pro Tools Setup macOS

Here is an article and videos on how to setup RAVEN 4.0 with Pro Tools on macOS

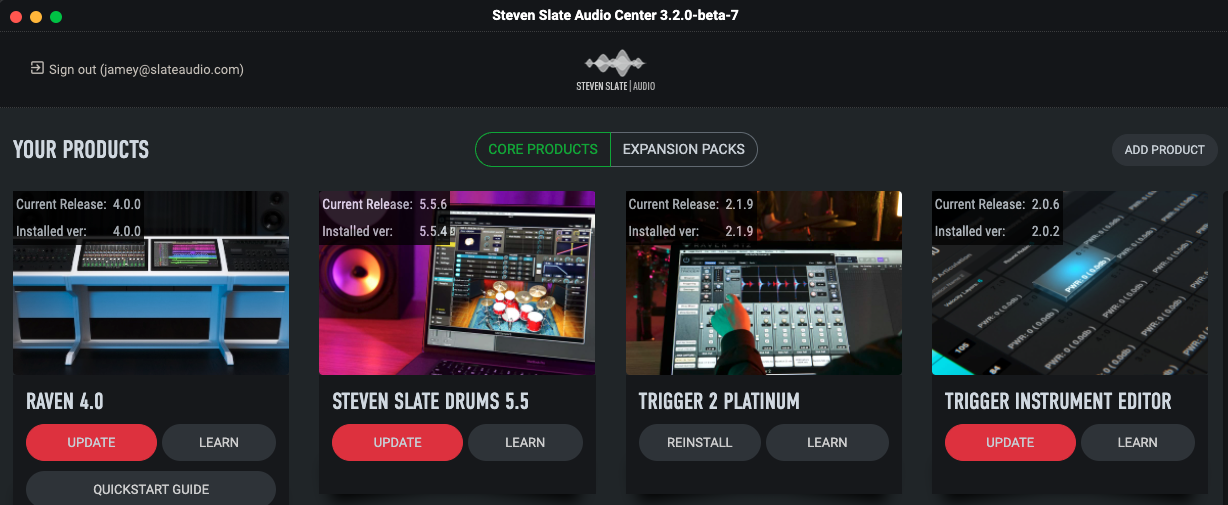

1. Install RAVEN 4.0 in the Slate Audio Center

2. Launch RAVEN and Pro Tools and setup the Midi Peripherals /  HUI ports for RAVEN 1 - 4 for MTi Max and RAVEN 1-3 for RAVEN MTi/MTi2/MTZ/MTX

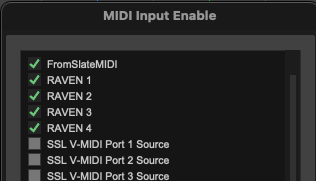

   Check on the box for RAVEN 1-4 and FromSlateMIDI for Batch Commands.

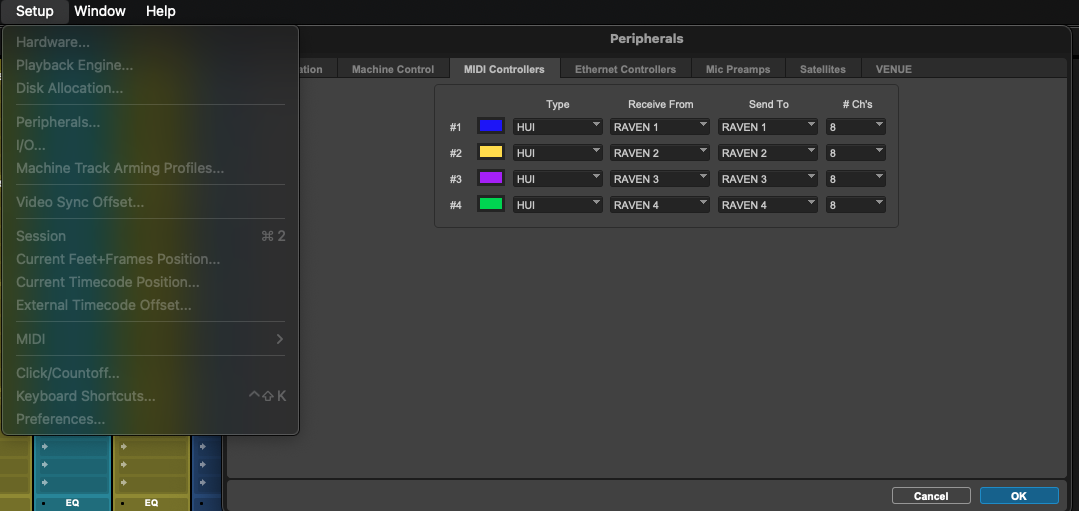

3. Setup 4 HUI ports from RAVEN 1 - 4 IN Midi Peripherals/MIDI Controllers area

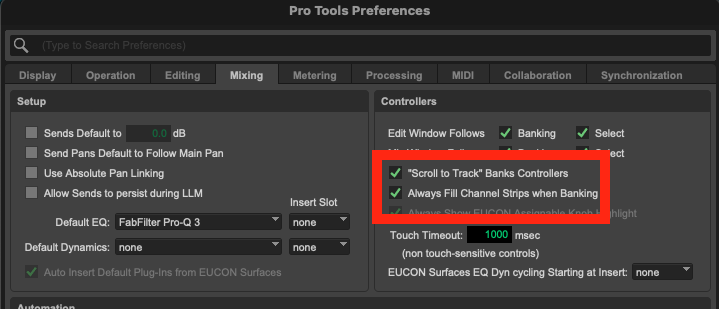

4. Turn on Fill Channel Strips when Banking in the Pro Tools Preferences

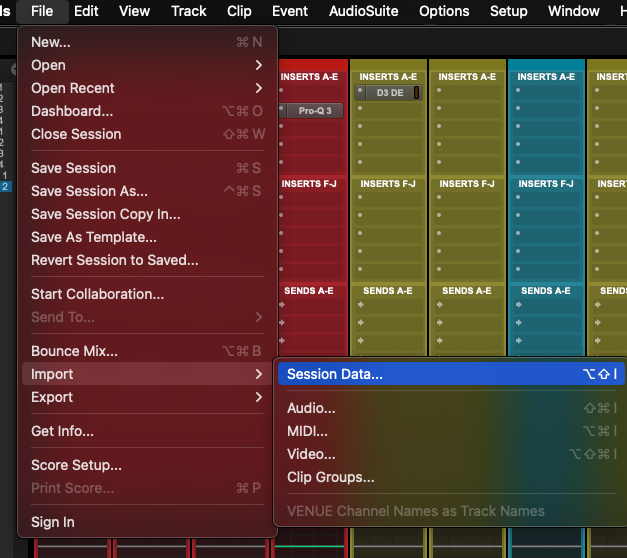

5. Import Session Data from the RAVEN Template and choose "Windows Configurations" for RAVEN Internal Mixer alignment

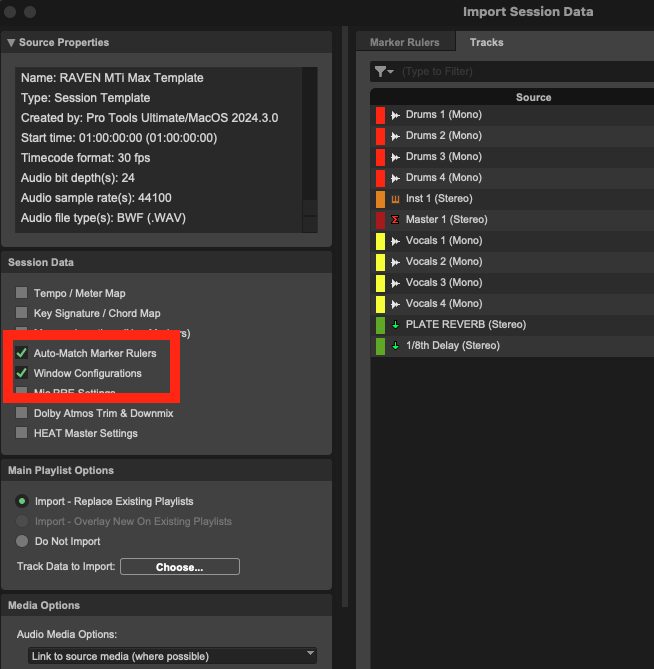

   Check the box for Windows Configurations.

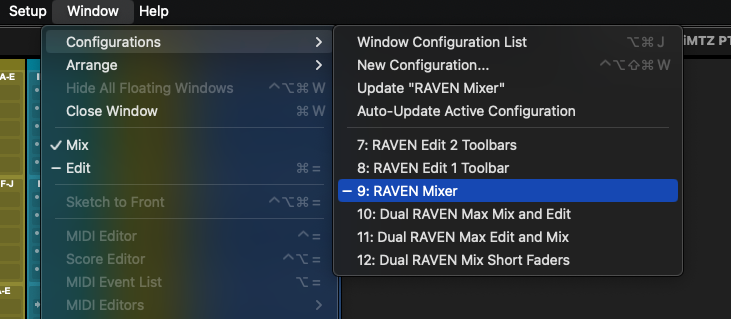

   Select the Windows Configurations from the Menu to recall it

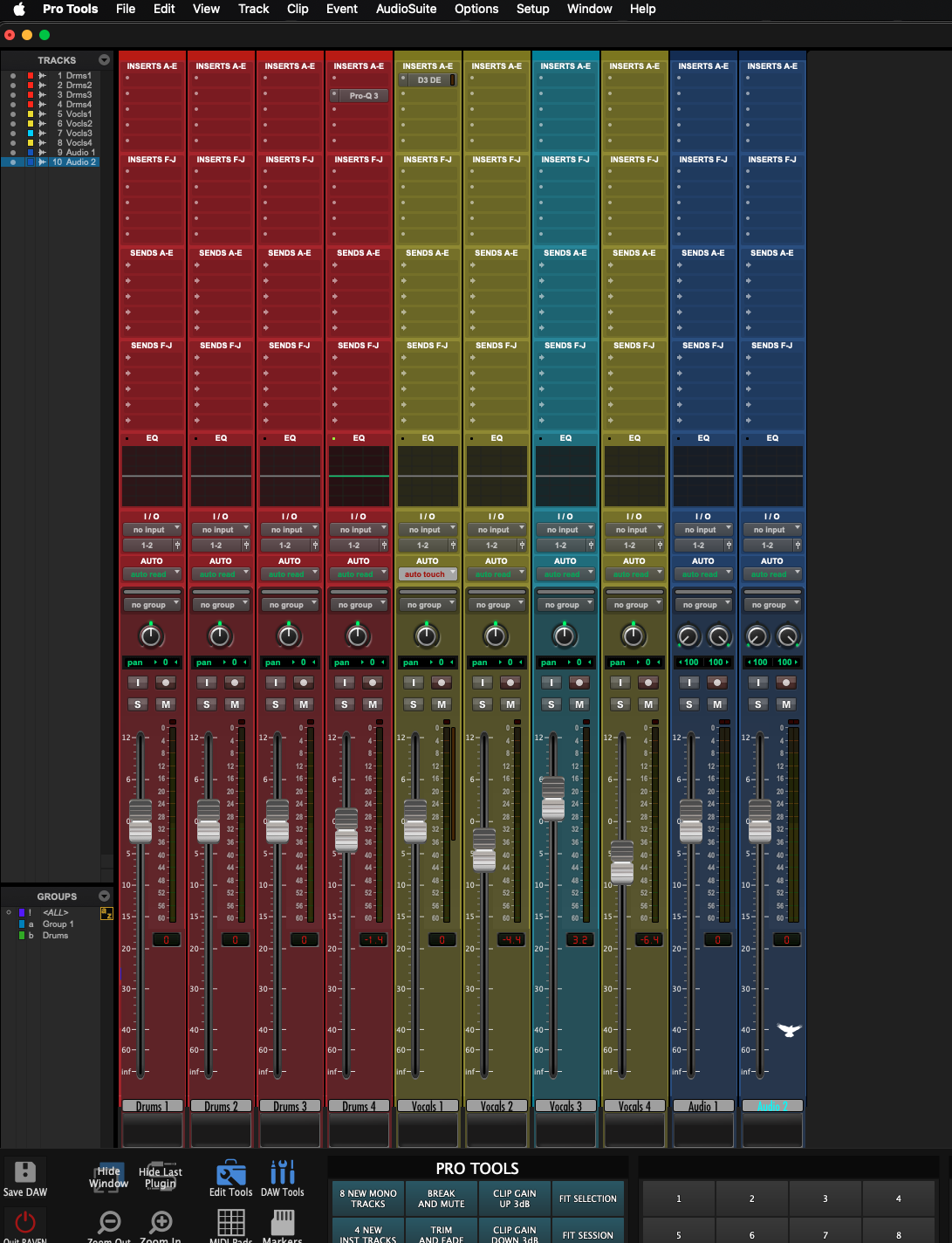

   Press Mix on the RAVEN Toolbar and confirm the RAVEN Internal Mixer is syncing

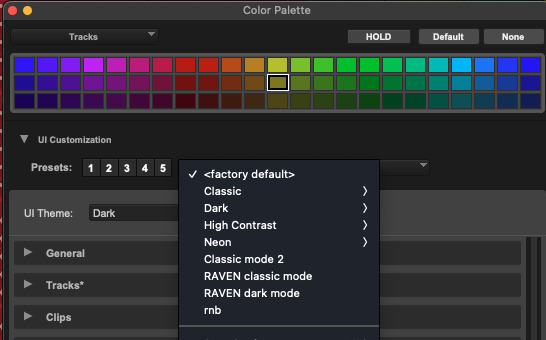

6. Load RAVEN Color Palette Presets

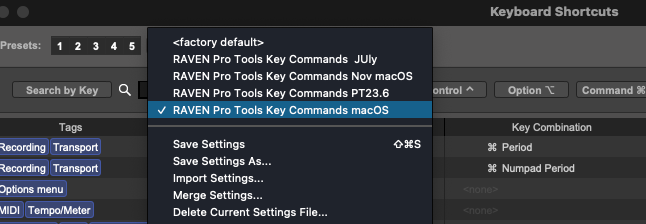

7. Import RAVEN KeyCommands for Custom Batch Commands mapping.


8.
